Calibrating the Cheese Press

Sheepy wanted to know how to calibrate the cheese press that her dad built. Since he built one for me, too (yay!) calibrating the scale was something I could do for her.

I needed a bathroom scale that fit on the base of the cheese press.

I used an old jar between the presser and the scale. Then I hung 5 lbs of weights on the left side of the lever and read the weight on the scale. I recorded it on the bottom of tape on the lever so I would know where to put the weights to get the pressure I needed for the cheese.

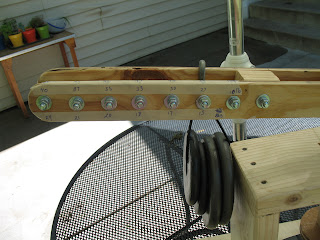

This is a photo of 15 lbs of weight on the closest spot.  It puts 32 lbs of pressure on the cheese. If you click on the photo to enlarge it, you can see the calibration weights.

Here are the weights I measured with 15 lbs of weights.

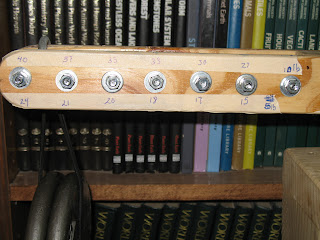

Here is a photo of the front of the lever with the calibration markings for 10 lbs of weights on the top tape and 5 lbs of weights on the bottom tape.
